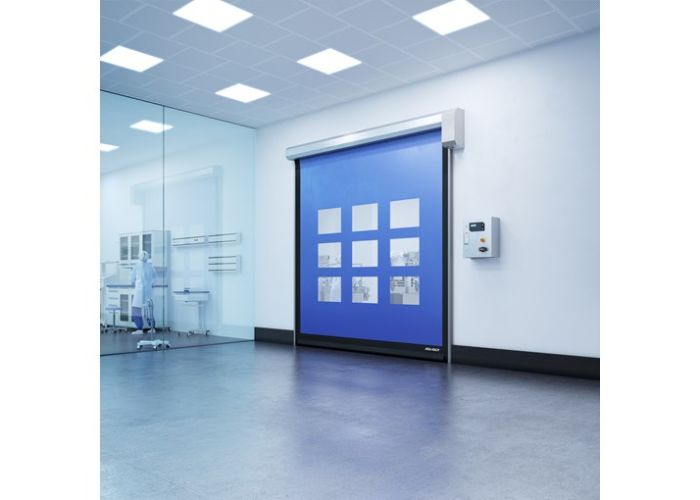

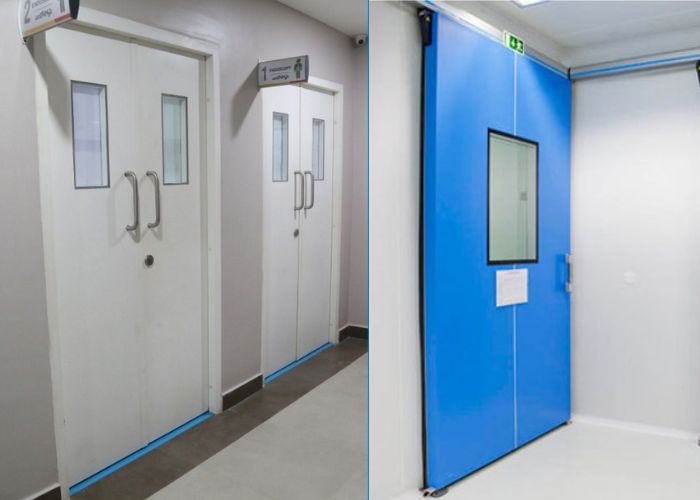

Doors for
Clean Room Application

Specific production areas must be protected from contamination caused by air and other sources. IHMS provides specialized doors for cleanroom applications to meet these critical needs.

Key Features:

High isolation and air-tightness
Control over internal pressure
Fast opening and closing mechanism
Minimal air loss
Stainless steel construction for high hygiene

Backed by the technical expertise of parent company, IClean Technologies, IHMS delivers high-performance cleanroom doors built for demanding environments.

Parameter	Specification
Door Skin Material	Galvanized Steel as per IS 277 / Stainless Steel 304 Grade, No.4 Finish
Door Skin Thickness	0.8mm / 1.2mm / 1.6mm
Frame Material	Galvanized as per IS 277 / Stainless Steel 304 Grade, No.4 Finish
Frame Sheet Thickness	1.2mm / 1.6mm / 2.0 mm
View Glass	Double glazed flush glass. Size: 150 mm – 750 mm (W), 150 mm – 1600 mm (H). Standard: 150x750, 200x300, 300x300, 350x750, 450x750 mm.
Finish	Pure Polyester Powder Coated to any RAL Shade / Wood stained. Resistant to 300 hrs salt spray.
Infill Materials	Honeycomb / Polyurethane Foam / Mineral Wool / Steel Stiffened
Door Thickness	Minimum 47 mm
Packing	Frame & Shutters wrapped with protective film, packed in corrugated boxes, crated or palletized as per quantity and transport mode.
Frame Profile (Standard)	Single Rebated: 100 x 58 mm Double Rebated: 150 x 58 mm Mitre joints; knock-down condition.
Non Standard Frame Profiles	Custom depths from 80 mm to 450 mm for both single and double rebated frames, on demand.
