Doors for
Fire applications

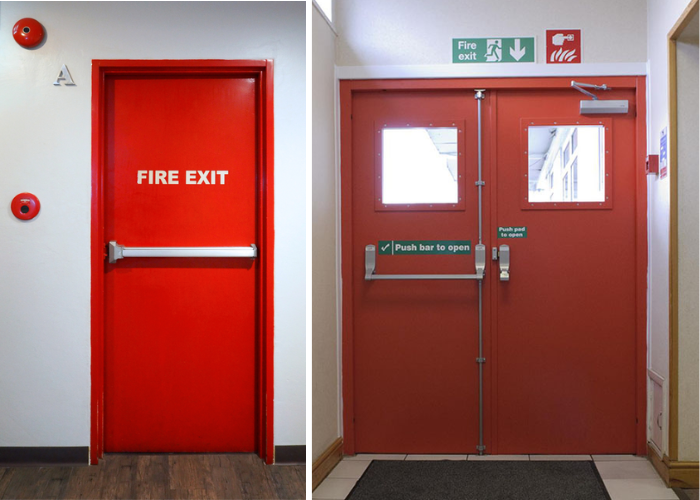

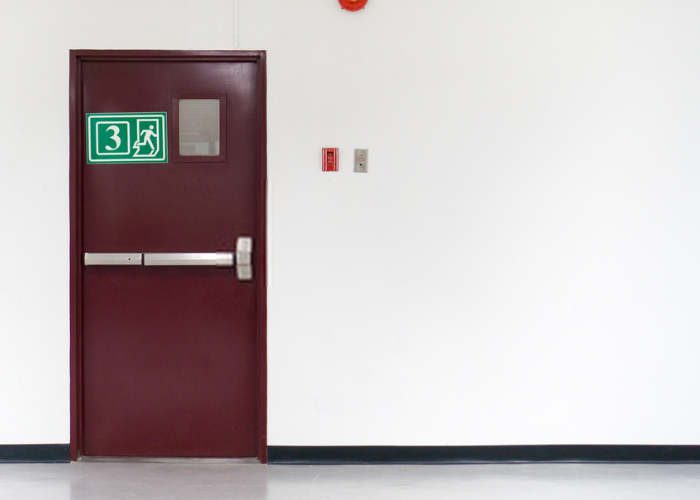

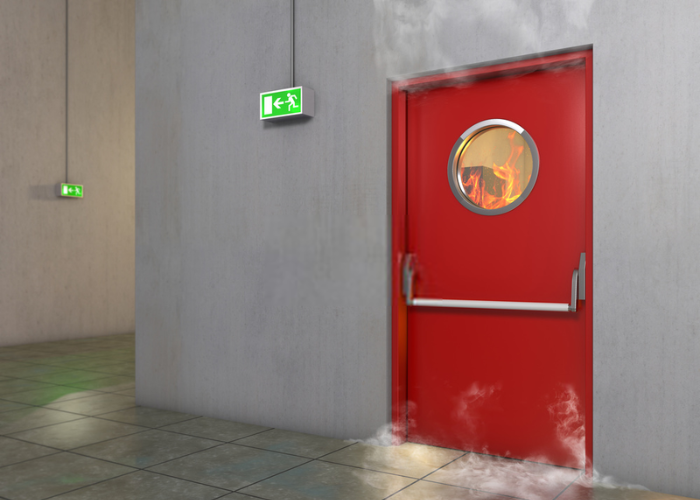

Fire Safety Doors

Fire resistance is a must in every commercial facility to prevent potential human and property loss. IHMS has mastered the production of high-quality fire safety doors, commonly known as fire doors.

Core Functions:

Our fire doors are designed using advanced technology and manufactured to meet European Standards, British Standards, and CBRI specifications.

Parameter Specification
Door Skin Material Galvanized Steel as per IS 277-ASTM A653 / Stainless Steel 304 Grade, No.4 Finish
Door Skin Thickness 0.8mm / 1.2mm / 1.6mm
Frame Material Galvanized as per IS 277-ASTM A653 / Stainless Steel 304 Grade, No.4 Finish
Frame Sheet Thickness 1.2mm / 1.6mm / 2.0 mm
View Glass Single Glazed with glass trim bead. Size: 150 mm – 450 mm (W), 150 mm – 750 mm (H).
Standard: 150x750, 200x300, 300x300, 350x750, 450x750 mm. Fire rated.
Finish Pure Polyester Powder Coated to any RAL Shade. Stain-resistant up to 300 hours.
Infill Materials Honeycomb / Mineral Wool / Steel Stiffened
Door Thickness Minimum 47 mm
Packing Frame & Shutters wrapped with protective film, packed in corrugated boxes, crated or palletized as per quantity and transport mode.
Frame Profile (Standard) Single Rebated: 100 x 58 mm
Double Rebated: 150 x 58 mm
Mitre joints; knock-down condition.
Non Standard Frame Profiles Custom depths from 100 mm to 450 mm for both single and double rebated frames, on demand.
