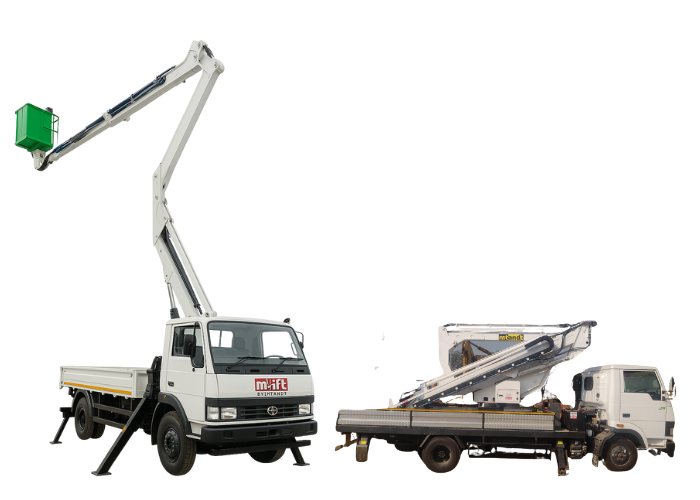

TRUCK MOUNTED BOOM LIFT
Articulated Type
Articulated Type
| Model | MLIFT 16 TM | MLIFT 23 TM |
|---|---|---|
| Recommended Truck & Wheel Base | 6 to 8 Ton GVW, 3.8m | 6 to 8 Ton GVW, 3.8m |

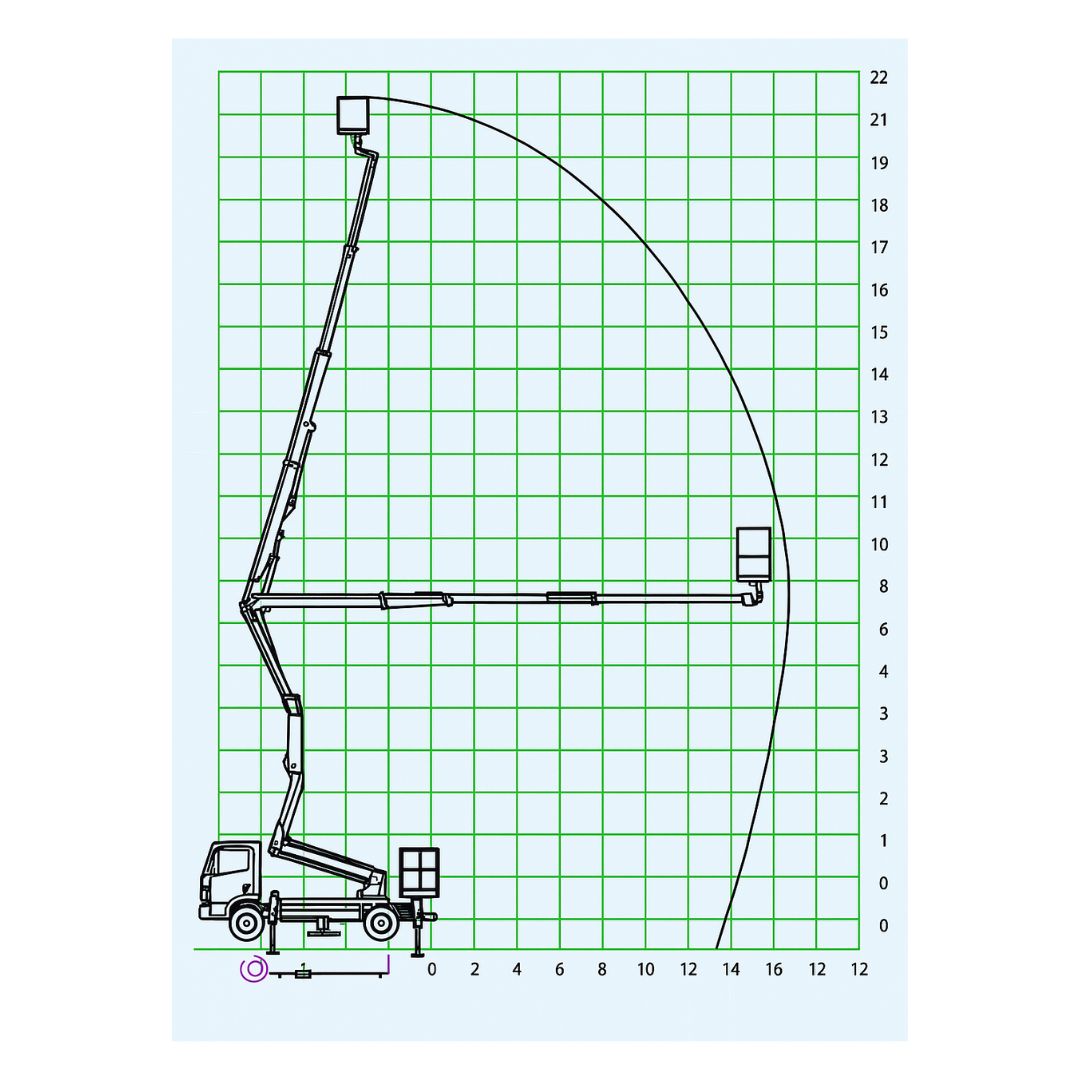

| Max. Working Height | 16m | 23m |
| Max. Platform Height | 14m | 21m |
| Outreach | 6.3 | 10m |
| Slewing Range | 360* | 360* |
| Safe Working Load | 200kg - 230kg | 200kg - 230kg |
| Cage Size | 1000 x 1060 x 770mm | 1000 x 1060 x 770mm |
| Emergency Pump | Emergency hand pump is provided to enable coming out of the equipment in case of pump/engine failure |
NA |
