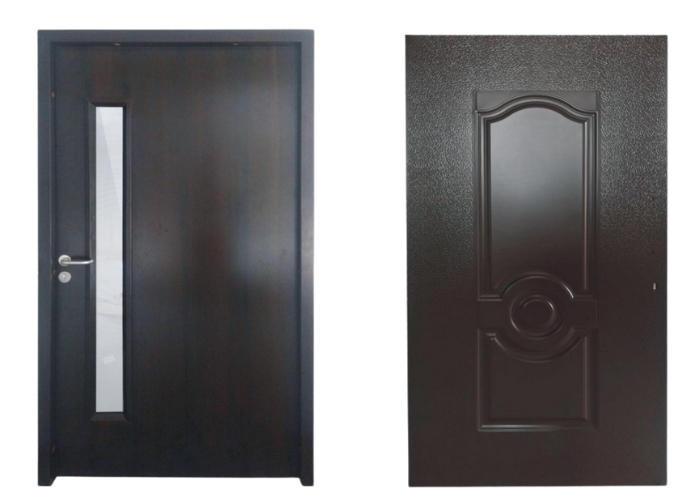

Residential Doors

Smooth & Durable Finish

IHMS produces hollow metal steel doors with PVC coating, offering superior smoothness, aesthetics, and resistance to scratches and wear.

Corrosion Resistance

Powder-coated and PVC laminate options ensure long-lasting protection, even in environments prone to moisture or salt exposure (300+ hours salt spray tested).

Customizable View Glass Options

Multiple standardized and customizable vision glass sizes available, offering versatility in design and enhanced visibility.

Strong Frame Construction

Manufactured with galvanized steel as per IS 277, ensuring high structural integrity and rust resistance.

Parameter Specification
Door Skin Material Galvanized Steel As Per IS 277.
Door Skin Thickness 0.6mm / 0.8mm
Frame Material Galvanized Material as per IS 277.
Frame Sheet Thickness 1.2mm
View Glass Single Glazed with glass trim / bead. Size shall be minimum 150 mm to 750 mm in width, minimum 150 mm to 1600 mm in height.
However, the standard sizes are 150 x 750 mm, 200 x 300 mm, 300 x 300 mm, 350 x 750 mm, 450 x 750 mm.
Finish Pure Polyester Powder Coated to any RAL shade / wood stained / to withstand 300 hours of salt spray. Also available in PVC laminate.
Infill Materials Honeycomb / Polyurethane Foam
Door Thickness Minimum 47 mm
Packing The Frame and Shutters shall be wrapped with protective film and put into corrugated boxes. The boxes shall be crated or palletised depending on the quantity and mode of transport.
Frame Profile (Standard) Single Rebated frame shall be 80 x 58 mm.
The frames are manufactured with mitre joints as a standard and in knock down condition.
Non Standard Frame Profiles Non Standard Frame Profiles can be manufactured on demand. The depth shall vary from 80 mm to 150 mm for single and double rebated frames.
