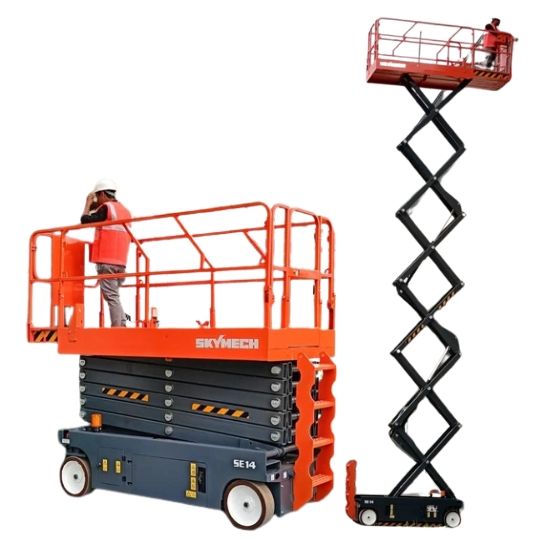

The SE14 scissor lift provides a working height range of 1.2 meters to 13.75 meters with a 350kg load capacity. It is an ideal aerial working platform to safely perform various tasks confidently at adjustable heights, even in narrow workspaces. The SE14 delivers outstanding quality and durability while offering a reduced total cost of ownership (TCO).
Easy to handle and maneuver
Effortlessly navigates tight and confined spaces, ensuring smooth operations.
3 persons maximum platform occupancy
Spacious enough to accommodate up to three individuals safely at once.
Low operational cost
Energy-efficient design helps keep long-term costs to a minimum.
Quick ascent and descent
Fast lifting and lowering mechanism for enhanced productivity on the job.

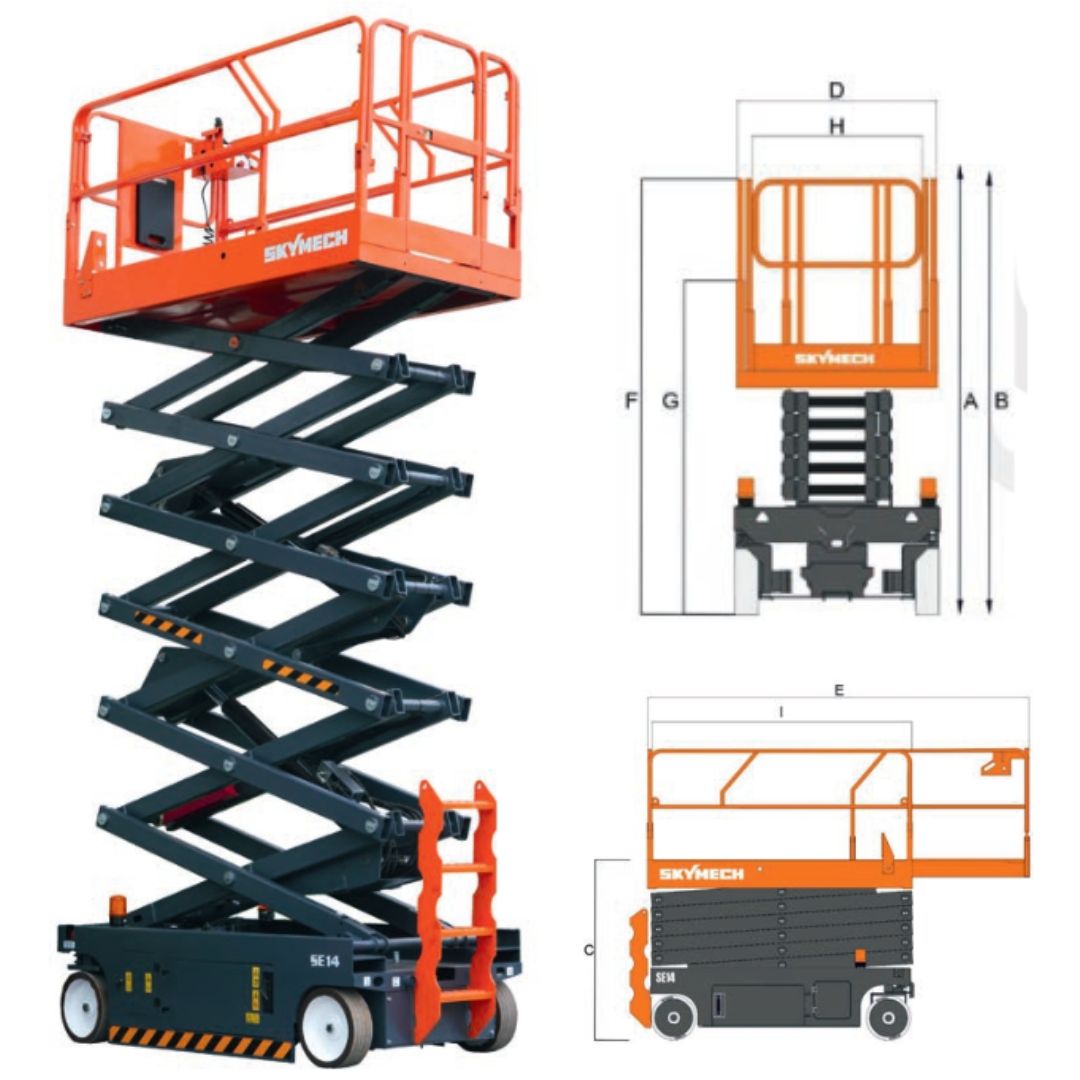

| DIMENSIONS | ||
|---|---|---|
| Max. Working Height (A) | m | 13.75 |
| Max. Platform Height (B) | m | 11.75 |
| Lowered Platform Height (C) | m | 1.2 |
| Overall Width Stowed (D) | m | 1.14 |
| Platform Inside Length (Extension) (E) | m | 3.16 |
| Stowed Height (Guide Rail Up) (F) | m | 2.7 |
| Stowed Height (Guide Rail Down) (G) | m | 1.90 |
| Platform Width (Inside Rails) (H) | m | 1.10 |
| Platform Inside Length (Retraction) (I) | m | 2.17 |
| KEY SPECIFICATIONS | ||
|---|---|---|
| Platform Extension | m | 0.9 |
| Ground Clearance (Pothole Device On) | mm | 12 |
| Ground Clearance (Pothole Device Off) | mm | 82 |
| Wheelbase | m | 1.84 |
| Gradeability | % | 23 |
| Drive Speed (Raised) | km/h | 0.8 |
| Drive Speed (Stowed) | km/h | 3.0 |
| Main Platform Load Capacity | kg | 350 |
| Platform Capacity Extended | kg | 125 |
| Non-marking Solid Tyre Size | mm | 381 x 127 |
| Battery | - | 6V × 4, 250 AH |
| Drive Front | - | 2 Wheel |
| Brake Rear | - | 2 Wheel |
| Steering Front | - | 2 Wheel |
| Over All Weight | kg | 3100 |
| Maximum Number of Person | - | 3 |
| Hydraulic Capacity | L | 20 |
The Knuckle Boom Cranes from Skymech Equipment are engineered for efficient heavy lifting operations. The SKB12 model operates on advanced hydraulic technology and comes in various load-lifting capacities. Its adaptable design allows for installation on both stationary platforms and mobile vehicles, offering customers flexibility in their setup.
• Available in different load-lifting capacities with advanced hydraulics
• Customisation options
• Heavy load-bearing capacity
• Smooth operation
| Parameter | Unit | A | B | C |
|---|---|---|---|---|
| Lifting Moment | Tm | 11 | 10.5 | 10 |
| Hydraulic Out Reach | M | 6 | 8 | 10 |
| Lifting Capacity | Kg | 1900 | 1400 | 800 |
| Slewing Angle | Degree | 400° | ||
| Slewing Torque | KNm | 17.7 | ||
| Height Above Chassis When Folded | mm | 2302 | ||
| Width When Folded | mm | 888 | ||
| Stabilizer Spread, Standard | mm | 4600 | ||
| Stabilizer Spread, Extra Long | mm | 5600 | ||
| Standard Weight | kg | 1600 | 1600 | 1800 |
| Max. Operating Pressure | bar | 310 | ||
| Recommended Pump Capacity | l/min | 40~50 | ||
| Oil Tank | Ltr | 100 | ||

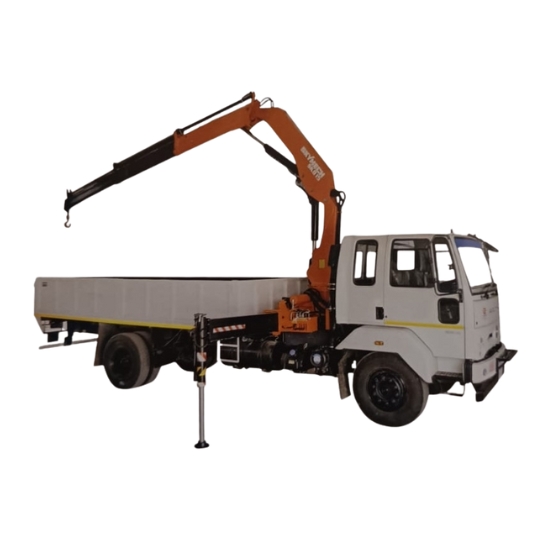

The knuckle boom cranes from SkyMech are optimal for industrial use and heavy lifting operations.
SkyMech knuckle boom cranes operate on advanced hydraulic technology and are available in different capacities. The versatility in installation on platforms and mobile vehicles gives us an edge over the competition.
Customization options
Tailored solutions to meet specific lifting needs.
Heavy load-bearing capacity
Designed to handle substantial weights with ease.
Smooth operation
Efficient and reliable performance for seamless lifting tasks.
Available in different load-lifting capacities with advanced hydraulics
Equipped with state-of-the-art hydraulic systems for superior lifting power.

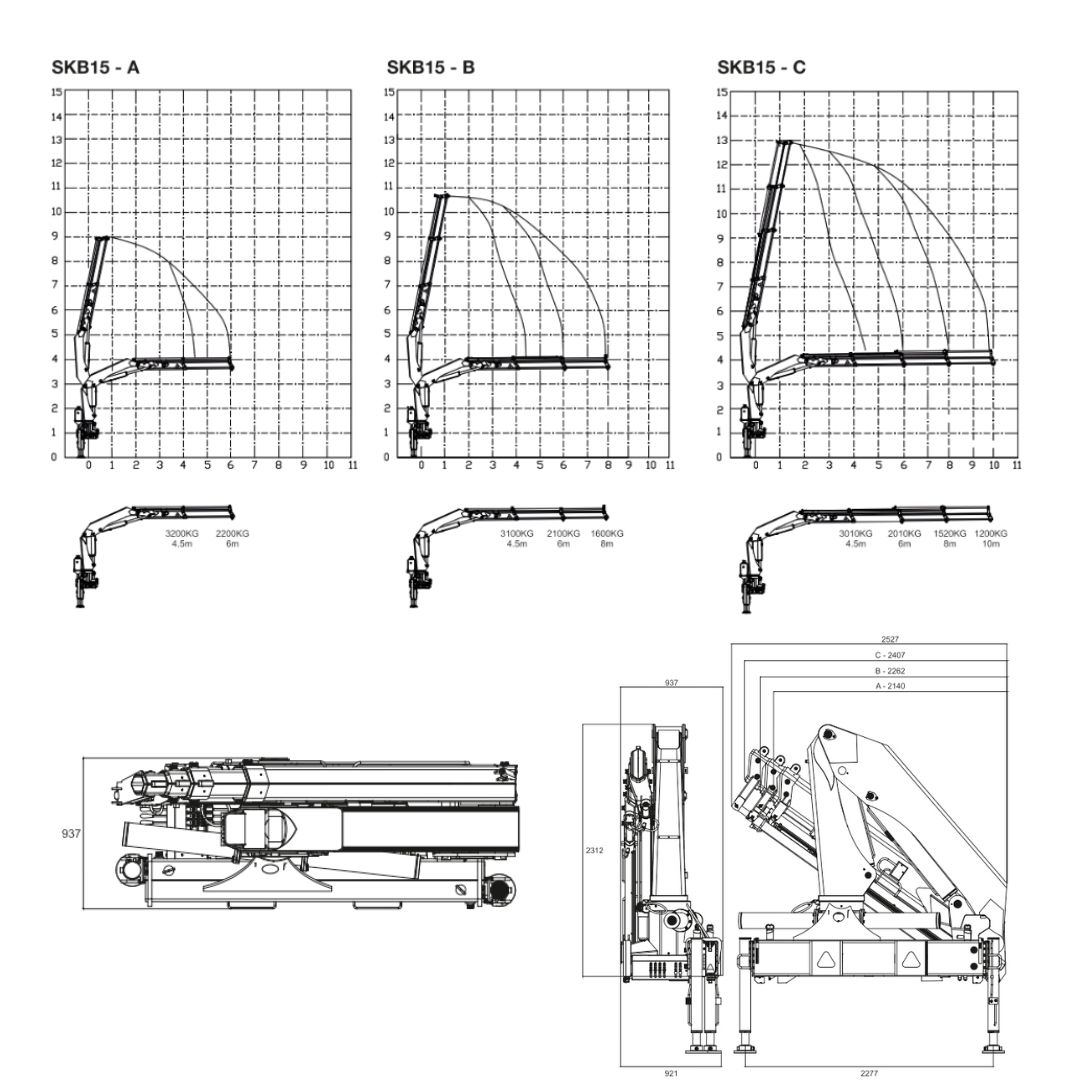

| Specification | Units | A | B | C |
|---|---|---|---|---|
| Load Moment | Tm | 14.5 | 13.7 | 13.5 |
| Hydraulic Reach | m | 6 | 8 | 10 |
| Lifting Capacity | kg | 2200 | 1600 | 1200 |
| Slewing Angle | Degree° | 400° | 400° | 400° |
| Slewing Torque | kg-m | 17.7 | 17.7 | 17.7 |
| Height above Chassis when folded | m | 2303 | 2303 | 2303 |
| Width when folded | m | 937 | 937 | 937 |
| Stabilizer spread, Standard | m | 4600 | 4600 | 4600 |
| Stabilizer spread, Extra long | m | 5600 | 5600 | 5600 |
| Standard weight | kg | 2268 | 2398 | 2500 |
| Max. Operating pressure | bar | 315 | 315 | 315 |
| Recommended Pump capacity | l/min | 60 | 60 | 60 |
| Oil Tank | Ltr | 100 | 100 | 100 |
